NOW TAKING PREORDERS! Current lead time is approximately 6 weeks.

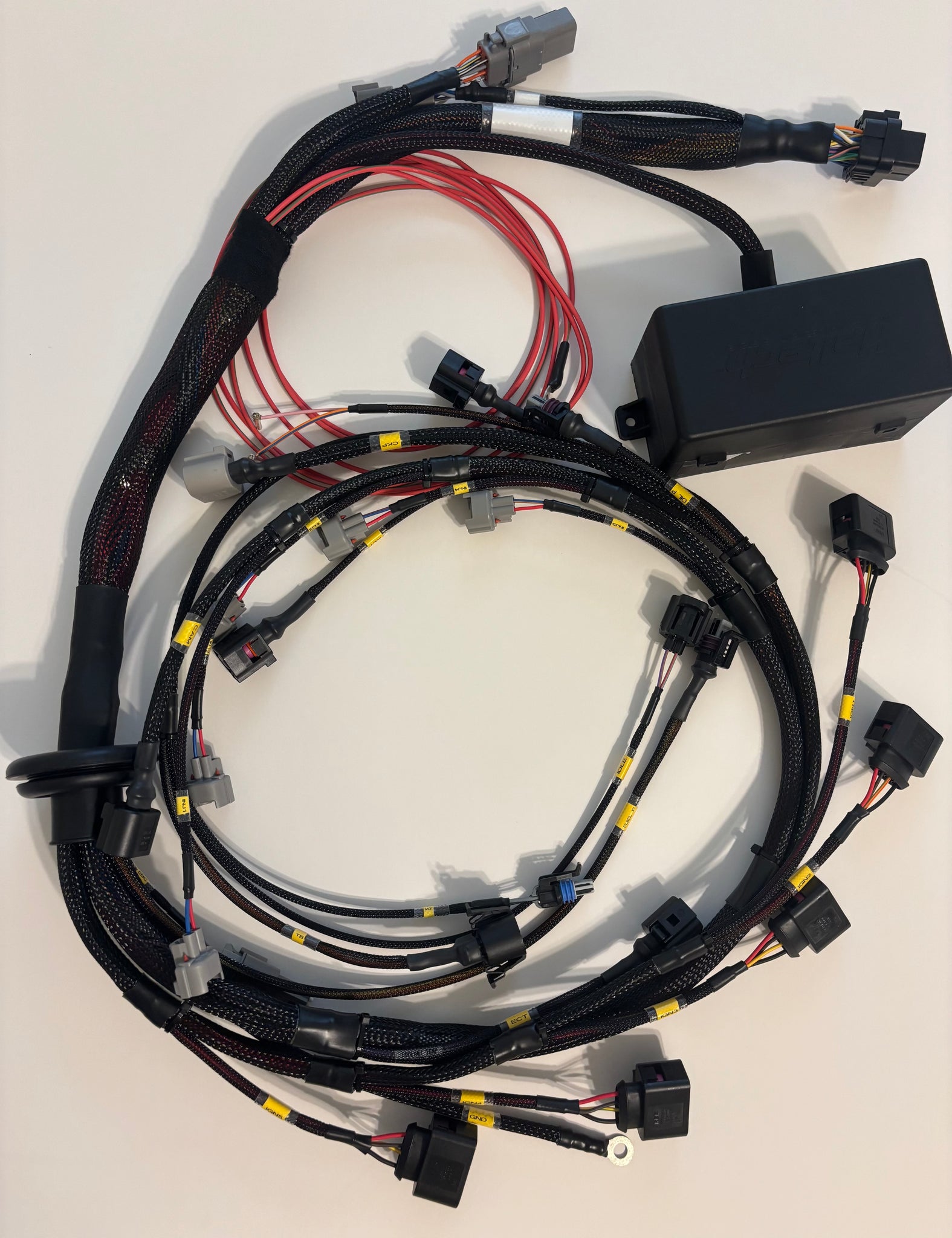

This is the Harness Only (without ECU). Wideband controller and O2 sensor kit is included.
Harness Connections:
- 12V Constant Power (ring terminal)
- Ground (ring terminal)
- Switched 12V input to turn on system
- Fuel Pump Output
- Haltech CAN
- 07K Crank Position Sensor
- 07K Cam Position Sensor
- 07K Ignition Coils
- 07K Fuel Injectors
- Contact us for information about larger injectors that utilize this connector!
- 07K Variable Valve Timing Solenoid (VVT)
- 07K Engine Coolant Temperature
- Intake Air Temperature (IAT) (standard connector for GM style sensor that's included)
- Throttle Position Sensor (TPS) (VR6 cable throttle)
- Elite 750 does not support Drive By Wire (DBW)
- Contact us if you'd like a different TPS connector installed!
- Idle Air Control (IAC) (Ford style)
- Oil Pressure (standard connector for aftermarket pressure sensor)
- Fuel Pressure (standard connector for aftermarket pressure sensor)
- Electronic Boost Control (EBC) (can be used as a generic output)
- Alternator Connector
- Spare Connector - for connecting extra sensors/actuators of your choosing
- Sensor Ground
- 12V
- DPI 2 (digital pulsed input)
- Shield
- DPO 4 (digital pulsed output)
- IGN 6 (can be used as a generic output)
- INJ 6 (can be used as a generic output)
Swap Harness:
- Direct Plug & Play w/ VW Sensors
- High Quality Materials and Connectors
- All Connectors Permanently Marked
- Includes Tach Output w/ Male & Female Universal Connector
- Includes Connector f/ Optional Fuel & Oil Press. Sending Units
- Easy OEM Gauge Integration f/ Porsche 944
Wideband Controller:
This single channel Haltech wideband O2 is a CAN based wideband controller perfectly suited for the Haltech Elite and Haltech Nexus ECU’s. This digital wideband lets you know when your O2 sensor has failed and enacts the ECU's engine protections.
DISCLAIMER:
Our parts are sold for off-road use only. All performance modifications and installations are at the customers own risk. Boost Brothers Garage and its owners hold no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products. Items sold for off-road use only are illegal in many states and provinces and are intended for racing vehicles which may never be used on a public road.
By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that Boost Brothers Garage and its partners hold no responsibility for any consequences, legal, or other, of such use and/or misuse.
